Model : TB

Additional files

950105-Electric-Wire-Hoist-AC-series-BB(en).pdf
Login to download
950105-Electric-Wire-Hoist-AC-series-BB(en).pdf
Product Description

5T/7.5T/10T

Inquiry
TB

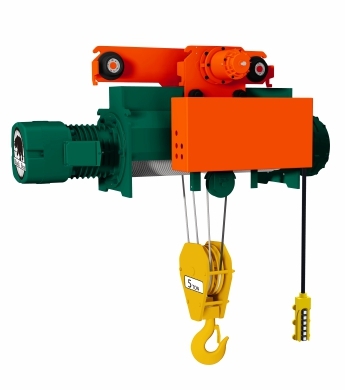

TB Model Electric Wire Rope Hoist
  • TB Model Electric Wire Rope Hoist
TB Model Electric Wire Rope Hoist
  • Product Description
  • Product Specifications

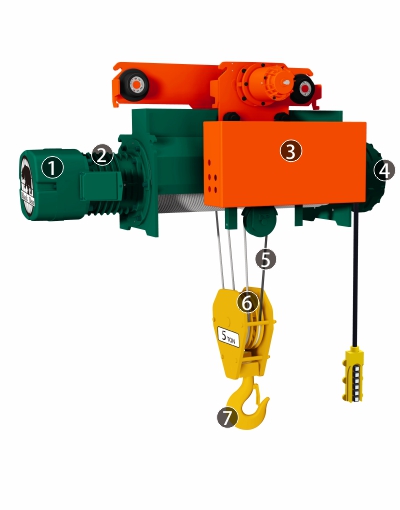

SB/SC/SE Electric Wire Rope Hoist
AC Brake

New design of AC brake electromagnetic motor disc system works precisely and synchronously with motors.

MOTOR

Highly efficiently squirrel cage motors of 40%ED rate (40/ 20% for dual speed) are quiet, small volume , light weight and suitable for most applications.

Control box

IP-20 control box is applied; Higher IP degree is available upon request.

Gear box

Hoist reduction gear system are made of alloy steel with surface harden treatment for long lasting life span.

Wire rope

According to JIS G 3525 standard wire rope applications.

Hook

Hot forged hooks with thrust bearing are enable to be swiveled 360°

Product Guide
SB/SC/SE Electric Wire Rope Hoist


Wire Rope
Wire Rope
SB/SC/SE Electric Wire Rope Hoist


Hook
Hook AC
SB/SC/SE Electric Wire Rope Hoist
Power Supply :
  • Electric wire rope hoist suits majority of the 3-Phase power in different countries,available in 50Hz or 60Hz, voltage from 220V up to 600V.
  • Dual-volt hoist subject to our confirmation.
Electric Wire Rope Hoist
Push Button Switch:
  • 2-point type : up and down.
  • 4-point type : up and down ; left and right (trolley).
  • 6-point type : up and down ; left and right ; forward and reverse (end carrier)
Lifting Height:
  • Standard lifting height: Please refer to specifications.
  • Optional height available upon request.
TB Electric Wire Rope Hoist


TB Electric Wire Rope Hoist Specification

  1. R/F=Reeving/falling numbers.
  2. Dual speed model under green shadow.
  3. Traversing pinion 5 ton M3.5x12t, 7.5 ton M3.5x20t, 10 ton M3.5x23t.
  4. Traversing motor standard supply, 50 Hz or 60Hz all used 4 pole, or please specify.
  5. Traversing motor: 5 ton used planetary reducing gear motor, 7-10 ton used reducing gear motor.
