Product No : BLFD-008,012,016,024,032,048
Product Description

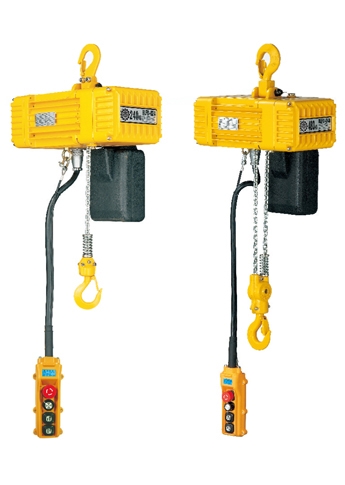

Portable Hoist

Green Product goes into industry

From green innovation to sustainable growth

In response to the global climate change in recent years as well as the lack of resources, businesses are promoting "Green growth" as new thinking and high-quality development as the main goal. This makes the global economic development a giant step toward a "green economy." Enterprises that recognize these changes and take the benefit of the new competitive advantage are the best opportunities to gain for sustainable growth.

Green innovation is not only boosting a firm’s competitiveness while maintaining the environment and its valuable resources for the future generations but also new products and processes which provide customer and business value but significantly decrease environmental impacts. Green innovation also results in positive environmental externalities: the value created by cleaner technologies can be appropriated by the entire society.

At hoisting equipment, Cheng Day Group is continuing to develop the new energy-efficient hoisting systems. For example :
1. BLFD electric chain hoist :
*Permanently Magnetic DC Brushless Motor, IP54, with insulation F and has overheat protection.
*Variable frequency control, low starting current, high efficiency, energy saving.
2. PM (Permanent magnetic) wire rope hoist :
*Permanent magnetic motor design : 1.5 times of starting current. 230% high starting torque. Compared with traditional insulation motor which has 6-8 times starting current, PM motor save energy at least 30~50%.

Not only Green innovation will be the necessary for enterprises to achieve sustainable development but also the only irreplaceable avenue. Through "Green innovation", Cheng Day Group reduces the consumption of resources, develops green technologies that reduce pollution, and creates a sustainable shared value of the environment, society and the economy.

Feature:

  • Single phase, in-house use conveniently.
  • Available voltage from 100~240V (+/-10%), 50Hz / 60Hz
  • Permanent Magnet Brushless Motor, IP54, with insulation F and has overheat protection
  • Dual speed offer, with infinitely variable low speed through adjustable pendant control button.
  • Variable frequency control, low starting current, high efficiency, energy saving.
  • Protection :
    (1) Clutch overload device
    (2) up / down limit switches
    (3) Emergency stop button
  • Electric control has protection, with 10 failure codes memory, easy to identify breakdown cause. Easy installation and maintenance.
  • Provides high reliability and long life.
  • Low noise, <75dB
  • Compact design. With a plastic case packing, easy to carry.
  • Optional New remote control which adjust speed through handle the angle of remote control.

BLFD
