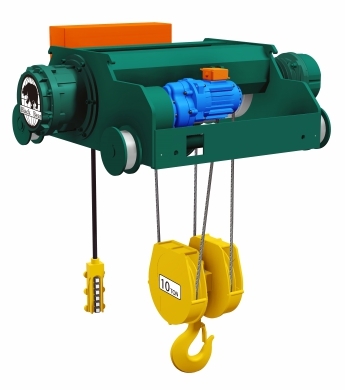

Wire Rope Hoist

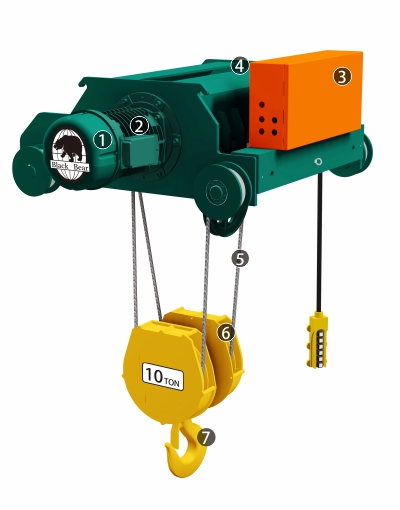

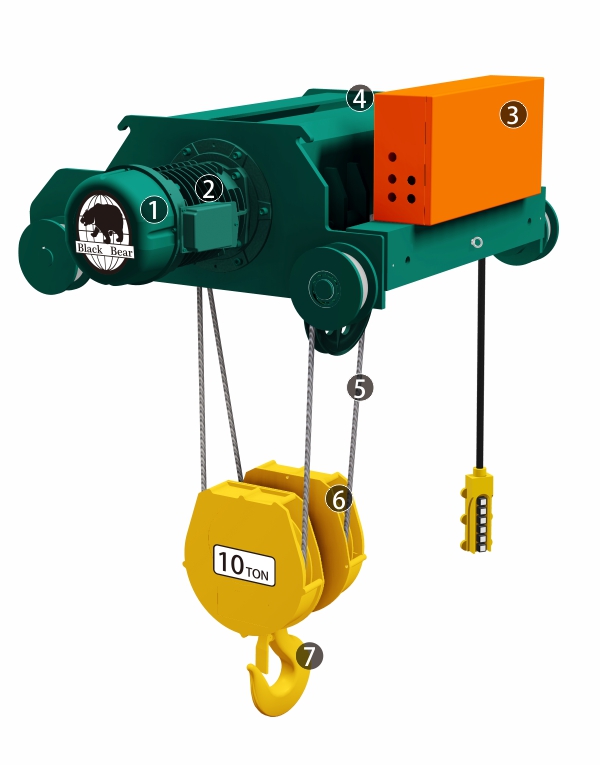

1.DC Brake

New design of DC brake electromagnetic motor disc system works precisely and synchronously with motors, and with a rectifier for trouble free.

• Take on Germany supplier, Lenze.
• Durable wear-resisting.
• Rapid reaction with low noise.
• Installation convenient as an integral design.

2.Motor

Highly efficiently squirrel cage motors of 40%ED rate (40/ 20% for dual speed) are quiet, small volume , light weight and suitable for most applications.

( Optional function ) A 60%ED rate motor with cooling fan is available for heavy duty condition.

3.Control Box

IP-20 control box is applied; Higher IP degree is available upon request.

4.Gear Box

Hoist reduction gear system are made of alloy steel with surface harden treatment for long lasting life span.

5.Wire Rope

According to JIS G 3525 standard wire rope applications

6.Sheave

The proper diameter of sheave ensures the operation and life span of wire rope.

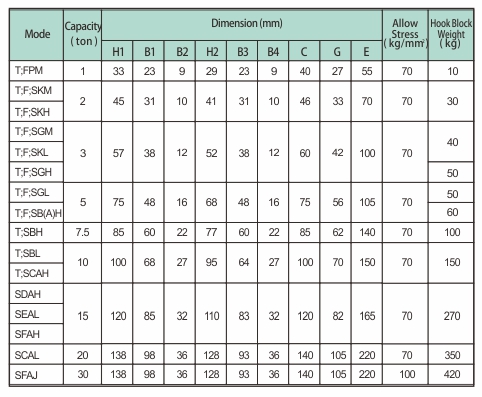

7.Hook

Hot forged hooks with thrust bearing are enable to be swiveled 360˚

Power Supply :

• Electric wire rope hoist suits majority of the 3-Phase power in different countries,available in 50Hz or 60Hz, voltage from 220V up to 600V.
• Dual-volt hoist subject to our confirmation.

Push Button Switch:

• 2-point type : up and down.
• 4-point type : up and down ； left and right (trolley).
• 6-point type : up and down ； left and right ； forward and reverse (end carrier)

Lifting Height:

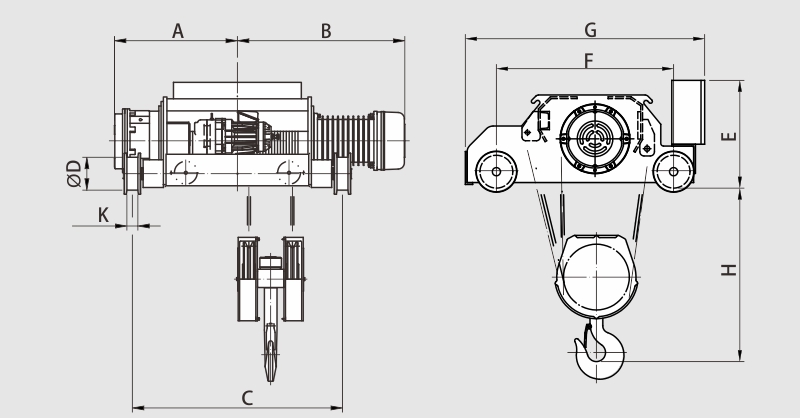

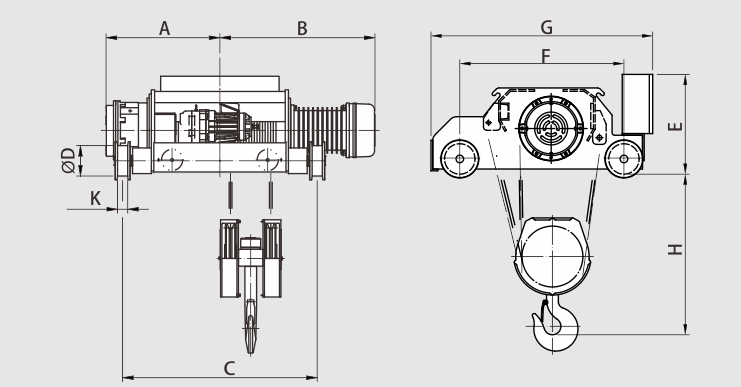

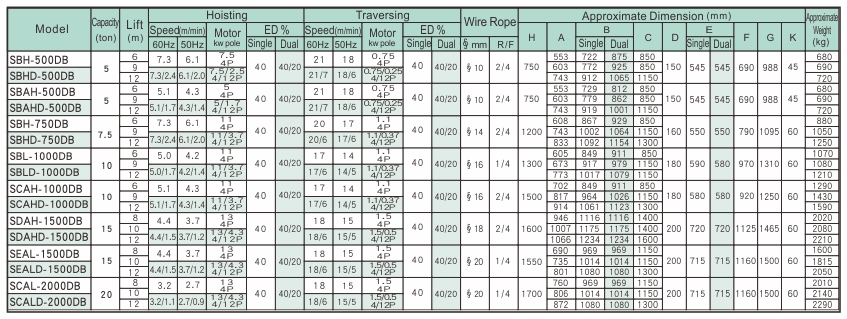

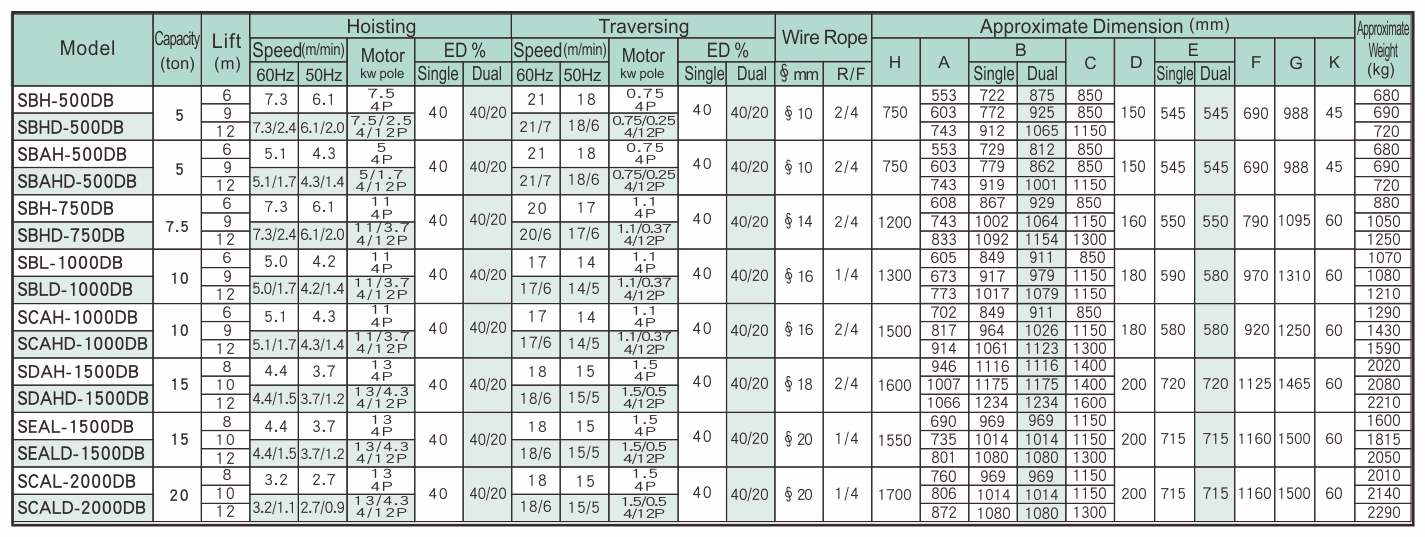

• Standard lifting height: Please refer to specifications.
• Optional height available upon request.
