Monorail Type (EA/EB/EC)

Model : TEAH,TEA1H,TEBH,TEB1H,TECH,TEC1H,TEC2H
Product Description
Inquiry

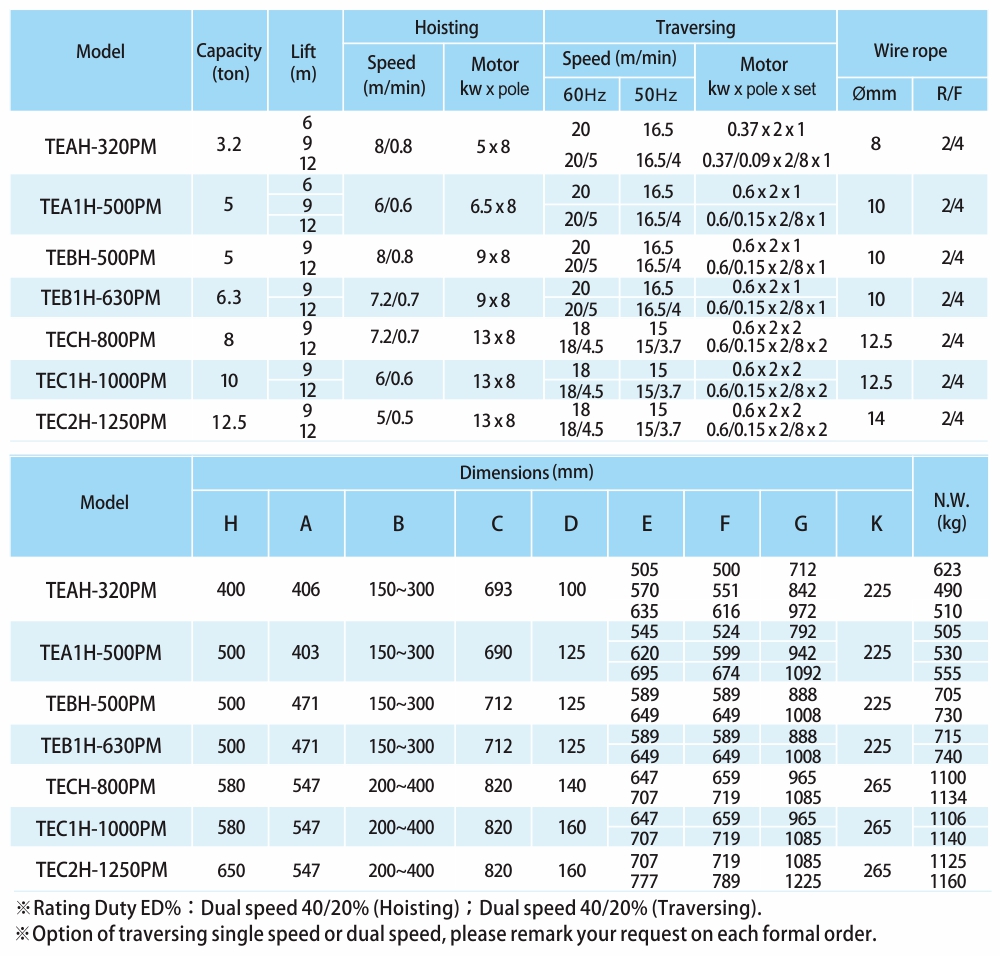

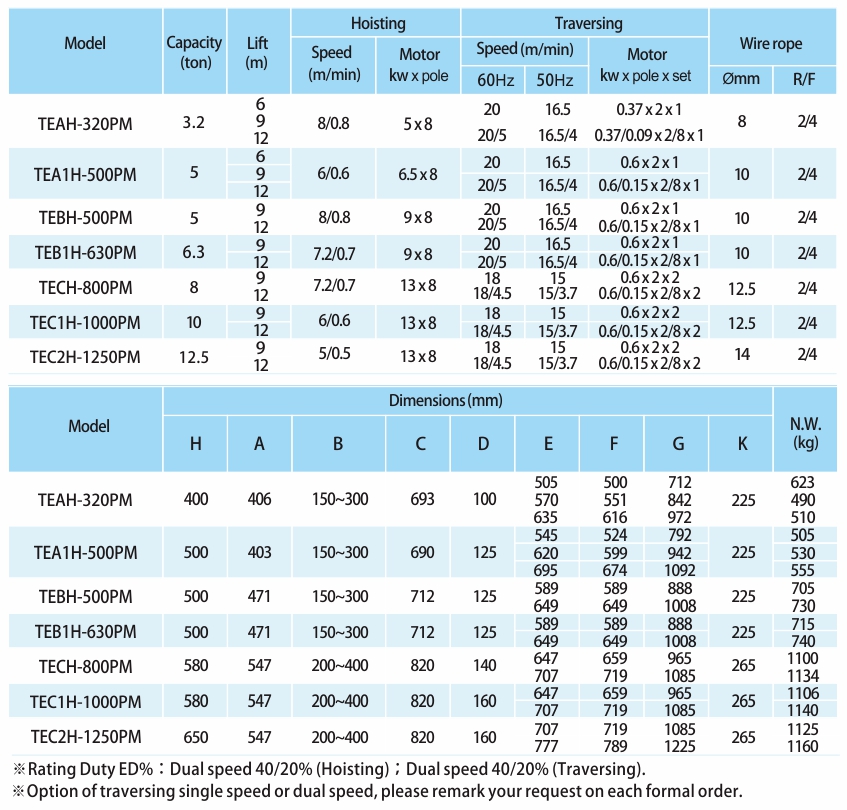

Monorail Type (EA/EB/EC)
EB

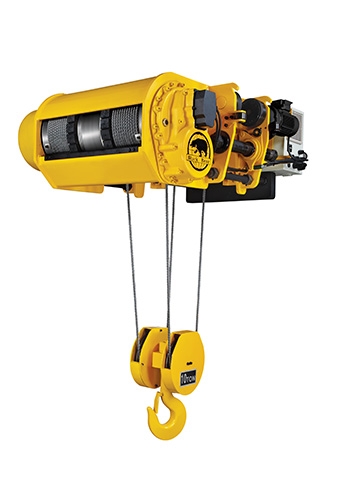

PM Wire Rope Hoist

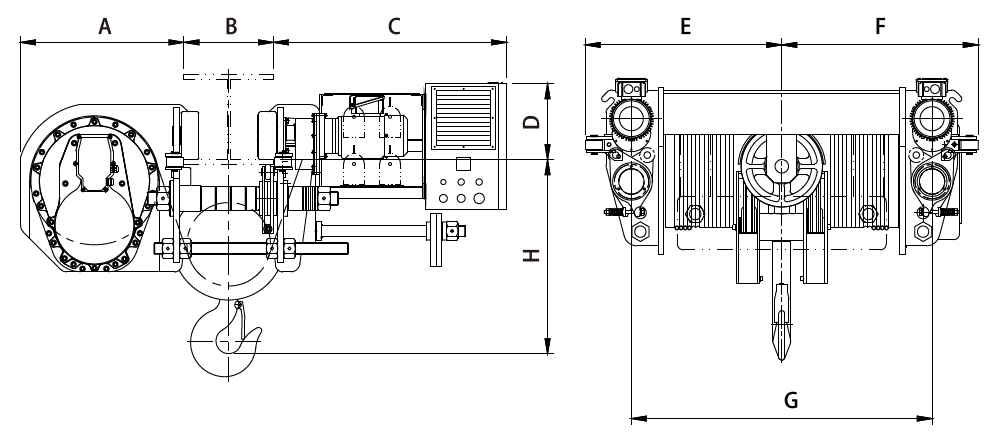

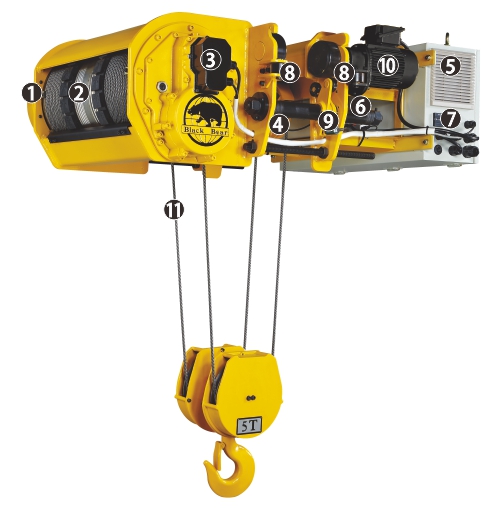

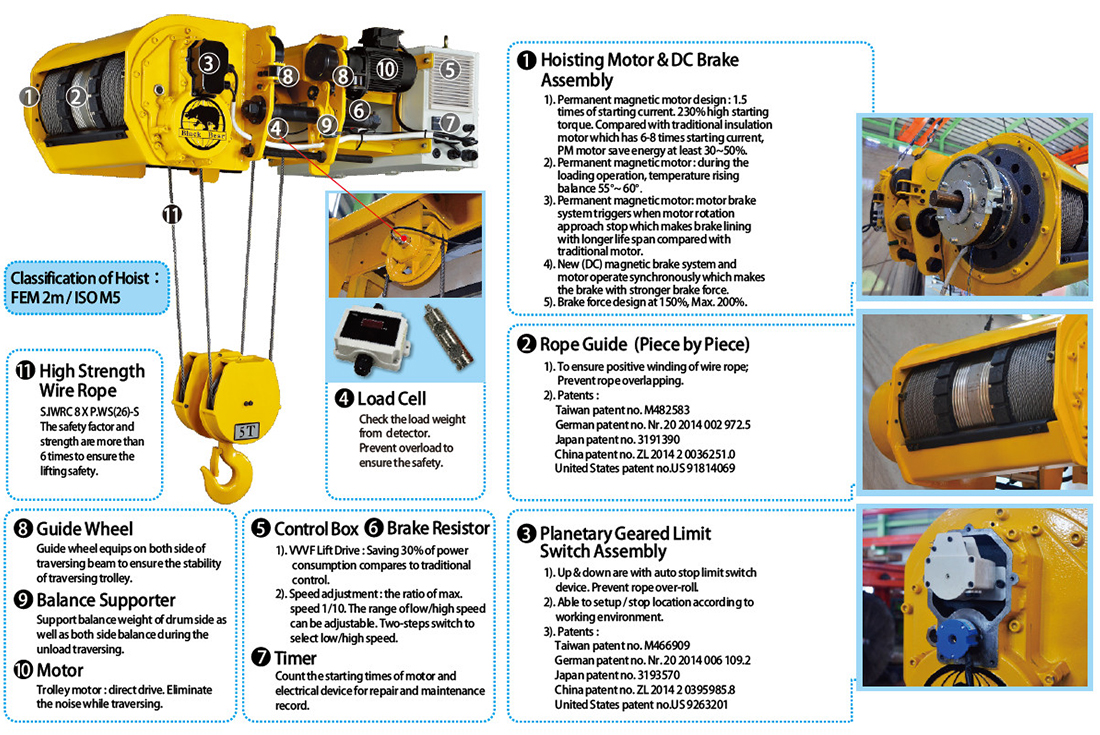

1.Hoisting Motor & DC Brake Assembly
  1. Permanent magnetic motor design : 1.5 times of starting current. 230% high starting torque. Compared with traditional insulation motor which has 6-8 times starting current, PM motor save energy at least 30~50%.
  2. Permanent magnetic motor : during the loading operation, temperature rising balance 55°~ 60°.
  3. Permanent magnetic motor: motor brake system triggers when motor rotation approach stop which makes brake lining with longer life span compared with traditional motor.
  4. New (DC) magnetic brake system and motor operate synchronously which makes the brake with stronger brake force.
  5. Brake force design at 150%, Max. 200%.
2.Rope Guide (Piece by Piece)
  1. To ensure positive winding of wire rope; Prevent rope overlapping.
  2. Patents :
    Taiwan patent no. M482583
    German patent no. Nr. 20 2014 002 972.5
    Japan patent no. 3191390
    China patent no. ZL 2014 2 0036251.0
    United States patent no.US 91814069
3.Planetary Geared Limit Switch Assembly
  1. Up & down are with auto stop limit switch device. Prevent rope over-roll.
  2. Able to setup / stop location according to working environment.
  3. Patents :
    Taiwan patent no. M466909
    German patent no. Nr. 20 2014 006 109.2
    Japan patent no. 3193570
    China patent no. ZL 2014 2 0395985.8
    United States patent no.US 9263201
4.Load Cell

Check the load weight from detector. Prevent overload to ensure the safety.

5.Control Box / 6.Brake Resistor
  1. VVVF Lift Drive : Saving 30% of power consumption compares to traditional control.
  2. Speed adjustment : the ratio of max. speed 1/10. The range of low/high speed can be adjustable. Two-steps switch to select low/high speed.
7.Timer

Count the starting times of motor and electrical device for repair and maintenance record.

8.Guide Wheel

Guide wheel equips on both side of traversing beam to ensure the stability of traversing trolley.

9.Balance Supporter

Support balance weight of drum side as well as both side balance during the unload traversing.

10.Motor

Trolley motor : direct drive. Eliminate the noise while traversing.

11.High Strength Wire Rope

S.IWRC 8 X P.WS(26)-S The safety factor and strength are more than 6 times to ensure the lifting safety.

Multipurpose and Multifunction

1. Permanent Magnetic Motor
1.5 times of starting current.230% high starting torque.Compared with traditional squirrel cage motor which has 6-8 times starting current, PM motor VVVF Lift Drive, save energy at least 30~50%.Very limited temperature rising, stable.Motor brake system triggers when motor rotation approach stop which makes brake lining with longer life span.Speed adjustment, the ratio of max. speed 1/10.The range of low/high speed can be adjustable.Two-steps switch to select low/high speed.Soft start / stop function can reduce swaying of the lifting objects.

2. Rope Guide
adjustable type, fit different drums' size.Patents applied.

3. Planetary Geared Limit Switch Assembly
3 steps or 4 steps setting.Patents applied.

4. High Strength
more than 6 times factor of safety.

5. With Inverter

6. Low headroom shape designed, compact.
