G4 (Soft Star / Stop)

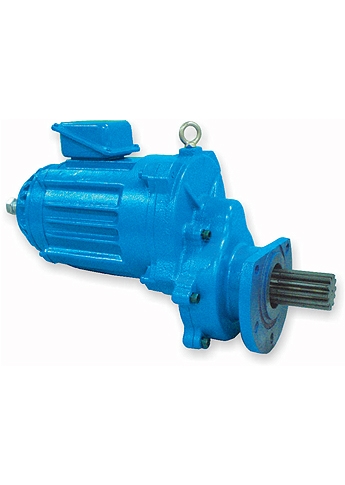

Operation Chart of NST and PR Series Reduction Gear Motor

Reducer

Reducer housing is formed from FC25 high strength material and machined with precision on computer programmed CNC machine.
Gears machined from SCM21 material, teeth are machine grooved, then gears are heat treated to high hardness for long life.

Flywheel (Soft Start / Stop)

Incorporate a flywheel provide a smoother acceleration and greatly reduces the pendulum motion when decelerating.
It provides a restraining effect on the starting torque of the motor thus providing a smooth start and stop.

Motor

Motor housing design provides rapid heat disspation.
Motor offers compact design, low starting amperages while yielding high starting torque； A mandatory requirement for motor

Electromagnetic Brake

DC brake provides excellent braking capability and easy to adjust and control the braking force for custom application.
Employs wear-resistant linings for longer life.
